DimServerCommandHandler Class Reference

Tol level class who to manages all DIM commands. More...

#include <DimServerCommandHandler.h>

Inheritance diagram for DimServerCommandHandler:

Inheritance graph
[legend]

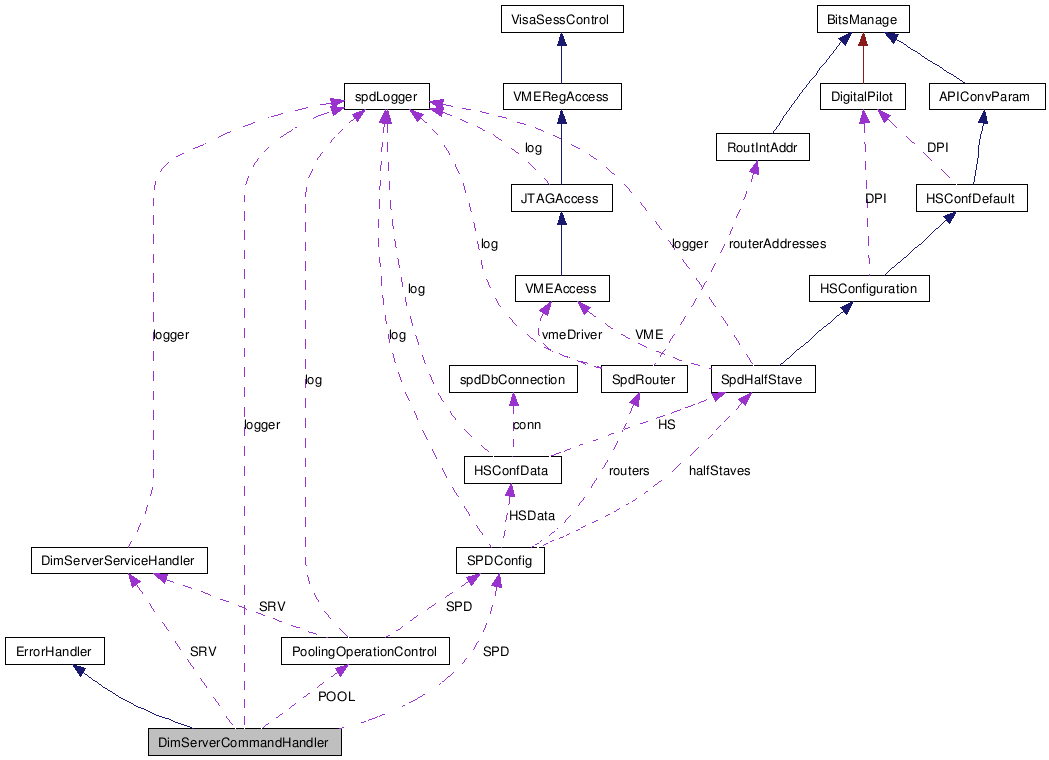

Collaboration diagram for DimServerCommandHandler:

Collaboration graph
[legend]

List of all members.

Public Member Functions

 DimServerCommandHandler (char side)
 ~DimServerCommandHandler (void)
void setJamPlayerFilename (string filename)
int PoolingFunction ()
void SendHearthbit ()

Protected Member Functions

void commandHandler ()
 Callback method to handle all DIM commands.
UInt32 getRouterAddressFromCommand (const char *command)
UInt32 getLrxAdressFromCommand (const char *command)
 gets VME the address of a LRX register according to command string
UInt32 getBusyAddressFromCommand (const char *command)
 gets VME the address of the busy box acording to command string
void argumentError ()
int RegisterCmdHandlerRt (void)
 comand handler for register access in the router
int RegisterCmdHandlerLRx (void)
 command handler for router access in the link receiver
int RegisterCmdHandlerBusy (void)
 command handler for register access in the busy card
int InitCmdHandler (void)
 command handler for initializing things, is this needed?!
int JTAGCmdHandler (void)
 command handler for jtag access in the halfstaves
int ConfCmdHandler (void)
 command handler for configuyration issues (this is used for global router access also=
int ROOTCmdHandler (void)
 command handler for the SPD analisys tool
int HSConfCmdHandler (void)
 command handler for halfstave configuration commands
int ScanCmdHandler (void)
 scan command handler
int StringCmdHandler (void)

Protected Attributes

DimCommand * cmdSetRootChNumber
 integer dim command for the analisys tool channel number (this can be removed)
DimCommand * cmdSetChNumber
 integer dim command to receive the channel number for PVSS operation
DimCommand * cmdRxCommand
 string dim commad to handle the commands received from PVSS
DimCommand * cmdDataIn
 integer array (32 bit) dim command to receive the data for the commands
DimCommand * cmdSetOffset
 integer (32 bit) dim command for offset (not really used either)
string jamPlayerExecutable
UInt32 DetSide
 keeps the detector side 0 = A 1 = C
DimServerServiceHandlerSRV
 Dim service handler to update the data to PVSS.
PoolingOperationControlPOOL
 takes care of all pooling operations
SPDConfigSPD
 SPD config containing halfstaves and routers.
UInt32 commNumb
 counts the number of commands
Int8 RootChNumber
 keeps the analisys tool channel number
Int8 ChNumber
 keeps the channel number from the dim command
UInt32 Offset
 keeps the offset (a VME thing) its now deprecated
UInt32 dataSize
 keeps the size of the data array
UInt32DataIn
 keeps the data in array, this is deleted and reallocated in the receiving of the DimCommand cmdDataIn
UInt32DataOut
 Data out array.
UInt32DataStream
 data for the analisys tool deprecated
char * CommString
 Command name input string.
char * CommStringOriginal
 keeps an copy of the command name (now its here only for historical reasons)
spdLoggerlogger
 logger instance
unsigned runNumber


Detailed Description

Tol level class who to manages all DIM commands.

It works basically as the top level class containing instance of all main subclasses and managing commands. It uses the commandHandler method inherit from DimServer to get the data from PVSS.


Constructor & Destructor Documentation

DimServerCommandHandler::DimServerCommandHandler ( char  side  )

DimServerCommandHandler::~DimServerCommandHandler ( void   )


Member Function Documentation

void DimServerCommandHandler::commandHandler ( void   )  [protected]

Callback method to handle all DIM commands.

UInt32 DimServerCommandHandler::getRouterAddressFromCommand ( const char *  command  )  [protected]

UInt32 DimServerCommandHandler::getLrxAdressFromCommand ( const char *  command  )  [protected]

gets VME the address of a LRX register according to command string

UInt32 DimServerCommandHandler::getBusyAddressFromCommand ( const char *  command  )  [protected]

gets VME the address of the busy box acording to command string

void DimServerCommandHandler::argumentError (  )  [protected]

method to be used when the number of arguments is not correct it will update all the DIM services informing the PVSS side of the error

int DimServerCommandHandler::RegisterCmdHandlerRt ( void   )  [protected]

comand handler for register access in the router

int DimServerCommandHandler::RegisterCmdHandlerLRx ( void   )  [protected]

command handler for router access in the link receiver

int DimServerCommandHandler::RegisterCmdHandlerBusy ( void   )  [protected]

command handler for register access in the busy card

int DimServerCommandHandler::InitCmdHandler ( void   )  [protected]

command handler for initializing things, is this needed?!

int DimServerCommandHandler::JTAGCmdHandler ( void   )  [protected]

command handler for jtag access in the halfstaves

int DimServerCommandHandler::ConfCmdHandler ( void   )  [protected]

command handler for configuyration issues (this is used for global router access also=

int DimServerCommandHandler::ROOTCmdHandler ( void   )  [protected]

command handler for the SPD analisys tool

int DimServerCommandHandler::HSConfCmdHandler ( void   )  [protected]

command handler for halfstave configuration commands

int DimServerCommandHandler::ScanCmdHandler ( void   )  [protected]

scan command handler

int DimServerCommandHandler::StringCmdHandler ( void   )  [protected]

New command decoder function that will implement a new way of parsing strings this function will expect to receive a white space separated string first the command and then all the arguments ex: "command arg1 arg2 ... argn" the prefix for this command is "STR_"

void DimServerCommandHandler::setJamPlayerFilename ( string  filename  )

Setter for the jamplayer external executable filename

int DimServerCommandHandler::PoolingFunction (  )  [inline]

makes all pooling operations in this loop

void DimServerCommandHandler::SendHearthbit (  )  [inline]

sends the heartbit to PVSS


Member Data Documentation

DimCommand* DimServerCommandHandler::cmdSetRootChNumber [protected]

integer dim command for the analisys tool channel number (this can be removed)

DimCommand* DimServerCommandHandler::cmdSetChNumber [protected]

integer dim command to receive the channel number for PVSS operation

DimCommand* DimServerCommandHandler::cmdRxCommand [protected]

string dim commad to handle the commands received from PVSS

DimCommand* DimServerCommandHandler::cmdDataIn [protected]

integer array (32 bit) dim command to receive the data for the commands

DimCommand* DimServerCommandHandler::cmdSetOffset [protected]

integer (32 bit) dim command for offset (not really used either)

string DimServerCommandHandler::jamPlayerExecutable [protected]

The internal member storing the jam player executable filename The fed server will call this file as an external executable on the program router command

UInt32 DimServerCommandHandler::DetSide [protected]

keeps the detector side 0 = A 1 = C

DimServerServiceHandler* DimServerCommandHandler::SRV [protected]

Dim service handler to update the data to PVSS.

PoolingOperationControl* DimServerCommandHandler::POOL [protected]

takes care of all pooling operations

SPDConfig* DimServerCommandHandler::SPD [protected]

SPD config containing halfstaves and routers.

UInt32 DimServerCommandHandler::commNumb [protected]

counts the number of commands

Int8 DimServerCommandHandler::RootChNumber [protected]

keeps the analisys tool channel number

Int8 DimServerCommandHandler::ChNumber [protected]

keeps the channel number from the dim command

UInt32 DimServerCommandHandler::Offset [protected]

keeps the offset (a VME thing) its now deprecated

UInt32 DimServerCommandHandler::dataSize [protected]

keeps the size of the data array

UInt32* DimServerCommandHandler::DataIn [protected]

keeps the data in array, this is deleted and reallocated in the receiving of the DimCommand cmdDataIn

UInt32* DimServerCommandHandler::DataOut [protected]

Data out array.

UInt32* DimServerCommandHandler::DataStream [protected]

data for the analisys tool deprecated

char* DimServerCommandHandler::CommString [protected]

Command name input string.

char* DimServerCommandHandler::CommStringOriginal [protected]

keeps an copy of the command name (now its here only for historical reasons)

spdLogger* DimServerCommandHandler::logger [protected]

logger instance

unsigned DimServerCommandHandler::runNumber [protected]

Variable to store the run number of a command


The documentation for this class was generated from the following files:
