HSConfData Class Reference

Instance to manage database configuration of the halfstaves. More...

#include <HSConfData.h>

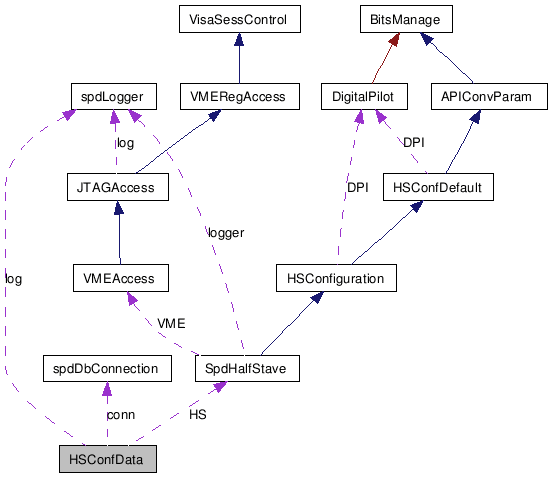

Collaboration diagram for HSConfData:

[legend]

List of all members.

Public Member Functions
	HSConfData ()
	HSConfData (SpdHalfStave *HS[NHalfStaves])
	~HSConfData (void)
void	SetHSFilePointer (SpdHalfStave *halfstaves[], char detSide)
Uint32	SaveEnChannelsInDB ()
	method to save the enabled channels configuration in the database
long int	getSideDBVersionNumber ()
	gets the current side version number of this onjec
long int	getGlobalDBVersionNumber ()
	gets the current global version of the configuration
UInt32	GetFromDB (long int spdver=-1)
	this one disapeared because the default of -1 will make the same
UInt32	SaveInDB (bool useDefaults=false)
long int	SaveInDB (std::vector< unsigned int > channelList, bool useDefaults=false)
UInt8 *	GetFromFile (UInt8 ChNumb)
int	dumpActualConfToFile ()
int	dumpDefaultConfToFile ()
long int	linkDbVersions (long int hsConfA, long int hsConfC, long int routerConfA, long int routerConfC, long int typeOfRun)
long int	linkDbVersions (long int otherSideConf, long int routerConfA=0, long int routerConfC=0, long int typeOfRun=0)
	links the current side version with the other versions
int	maskDetectorFromDB (int version=-1)
	masks the noisy pixels with the data straight from the DB
long int	getMaskDbVersion ()
Private Attributes
SpdHalfStave *	HS [NHalfStaves]
spdLogger *	log
spdDbConnection *	conn
long int	DbVersNumber
long int	sideDbVer
long int	maskVerNumber
char	side

---

Detailed Description

Instance to manage database configuration of the halfstaves.

this class somehow shares functionalitie with the SPDConfig class it was created long time ago when Ivan was in the development, I think that this class should slowly disapear and move the functionality to the SPD config class

---

Constructor & Destructor Documentation

HSConfData::HSConfData

(

void

)

HSConfData::HSConfData

(

SpdHalfStave *

HS[NHalfStaves]

)

HSConfData::~HSConfData

(

void

)

---

Member Function Documentation

void HSConfData::SetHSFilePointer	(	SpdHalfStave *	halfstaves[],
		char	detSide
	)			[inline]

Uint32 HSConfData::SaveEnChannelsInDB

(

)

method to save the enabled channels configuration in the database

long int HSConfData::getSideDBVersionNumber

(

)

[inline]

gets the current side version number of this onjec

long int HSConfData::getGlobalDBVersionNumber

(

)

[inline]

gets the current global version of the configuration

UInt32 HSConfData::GetFromDB

(

long int

spdver = -1

)

this one disapeared because the default of -1 will make the same

UInt32 HSConfData::SaveInDB

(

bool

useDefaults = false

)

for the moment the useDefaults is for debugging only, its possible to read from file and save in db this way

long int HSConfData::SaveInDB	(	std::vector< unsigned int >	channelList,
		bool	useDefaults = false
	)

UInt8* HSConfData::GetFromFile

(

UInt8

ChNumb

)

int HSConfData::dumpActualConfToFile

(

)

int HSConfData::dumpDefaultConfToFile

(

)

long int HSConfData::linkDbVersions	(	long int	hsConfA,
		long int	hsConfC,
		long int	routerConfA,
		long int	routerConfC,
		long int	typeOfRun
	)

long int HSConfData::linkDbVersions	(	long int	otherSideConf,
		long int	routerConfA = 0,
		long int	routerConfC = 0,
		long int	typeOfRun = 0
	)

links the current side version with the other versions

Parameters:

	otherSideConf	the version of the other side
	routerConfA	router configuration for side A
	routerConfC	router configuration for side C
	typeOfRun	run type

int HSConfData::maskDetectorFromDB

(

int

version = -1

)

masks the noisy pixels with the data straight from the DB

long int HSConfData::getMaskDbVersion

(

)

[inline]

---

Member Data Documentation

SpdHalfStave* HSConfData::HS[NHalfStaves] [private]

spdLogger* HSConfData::log [private]

spdDbConnection* HSConfData::conn [private]

long int HSConfData::DbVersNumber [private]

long int HSConfData::sideDbVer [private]

long int HSConfData::maskVerNumber [private]

char HSConfData::side [private]

---

The documentation for this class was generated from the following files:

• F:/projectos/SpdFEDServerPackage/SpdFEDServerRelease/HSConfig/HSConfData.h
• F:/projectos/SpdFEDServerPackage/SpdFEDServerRelease/HSConfig/HSConfData.cpp

---
