SpdDelayScan Class Reference

Class to manage a delay scan. More...

#include <SpdDelayScan.h>

Inheritance diagram for SpdDelayScan:

[legend]

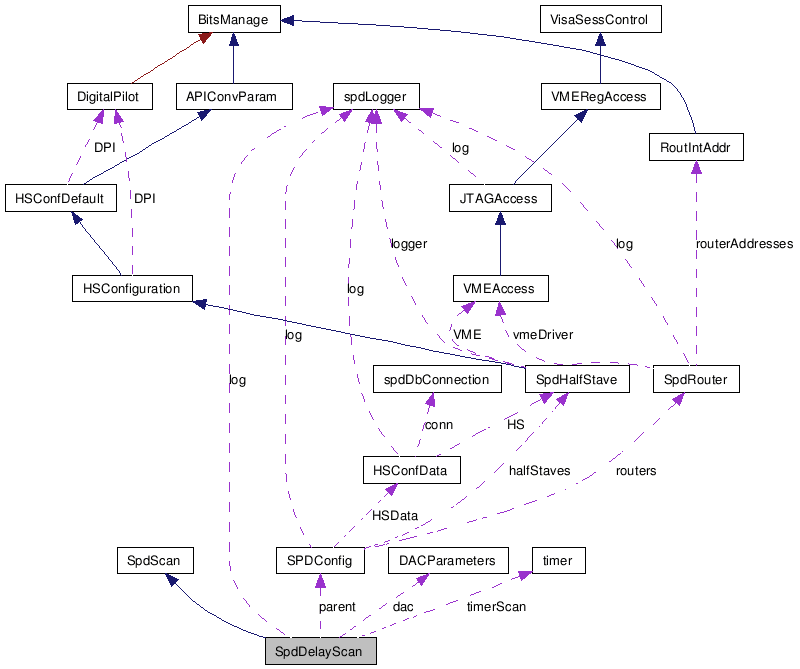

Collaboration diagram for SpdDelayScan:

[legend]

List of all members.

Public Member Functions
unsigned	start (UInt32 triggerNumber, UInt8 dacStart, UInt8 dacEnd, UInt8 newStep, bool InternTrig, UInt32 waitTime)
unsigned	restart (void)
	Method to restart the dac scan.
void	stop ()
	Method to stop the dac scan.
void	scan ()
	Method to lead the dac scan.
bool	isActive ()
	method to get if the scan is active or not
	SpdDelayScan (SPDConfig *spdConf)
	~SpdDelayScan (void)
Private Member Functions
void	delayStep ()
void	SetScansHeader (UInt8 routerNumber)
	will write the router header for this scan
Private Attributes
bool	active
	stores if the scan is active or not
DACParameters	dac
	stores the parameters of a dac scan
spdLogger *	log
	logger of the class
bool	internalTrigger
	stores if we use internal trigger or not
UInt32	triggerN
	stores the number of triggers
UInt32	chipSelect
	keeps the chip selection for this scan (10 bits)
UInt32	waitTime
	waiting time between steps
UInt8	scanType
	this is a constant and should be 2 for a dac scan
SPDConfig *	parent
	parent SPDConfig to handle the hardware
UInt8	misControlIndex
	stores the misc_control index
UInt8	delayControlIndex
	stores the delayControlIndex
UInt8	misControlValue
	stores the current misc control value
timer	timerScan
	timer for the scan

---

Detailed Description

Class to manage a delay scan.

two dacs will be looped: delay_control and misc_control for each step of delay_control misc_control will have the two possible values 192 and 128 so the total number of steps of the scan will be 2*(steps of delay_control)

---

Constructor & Destructor Documentation

SpdDelayScan::SpdDelayScan

(

SPDConfig *

spdConf

)

SpdDelayScan::~SpdDelayScan

(

void

)

---

Member Function Documentation

void SpdDelayScan::delayStep

(

)

[private]

void SpdDelayScan::SetScansHeader

(

UInt8

routerNumber

)

[private]

will write the router header for this scan

unsigned SpdDelayScan::start	(	UInt32	triggerNumber,
		UInt8	dacStart,
		UInt8	dacEnd,
		UInt8	newStep,
		bool	InternTrig,
		UInt32	waitTime
	)

method to initiate a delay scan

Parameters:

	triggerNumber	number of triggers to send (if internal trigger)
	dacStart	delay control value to start
	dacEnd	delay control value to finish
	newStep	step of delay control to increment
	InternTrig	flag enabling internal trigger
	waitTime	time to wait beetween delay steps

unsigned SpdDelayScan::restart

(

void

)

[virtual]

Method to restart the dac scan.

Reimplemented from SpdScan.

void SpdDelayScan::stop

(

)

[inline, virtual]

Method to stop the dac scan.

Reimplemented from SpdScan.

void SpdDelayScan::scan

(

)

[virtual]

Method to lead the dac scan.

Reimplemented from SpdScan.

bool SpdDelayScan::isActive

(

)

[inline, virtual]

method to get if the scan is active or not

Reimplemented from SpdScan.

---

Member Data Documentation

bool SpdDelayScan::active [private]

stores if the scan is active or not

DACParameters SpdDelayScan::dac [private]

stores the parameters of a dac scan

spdLogger* SpdDelayScan::log [private]

logger of the class

bool SpdDelayScan::internalTrigger [private]

stores if we use internal trigger or not

UInt32 SpdDelayScan::triggerN [private]

stores the number of triggers

UInt32 SpdDelayScan::chipSelect [private]

keeps the chip selection for this scan (10 bits)

UInt32 SpdDelayScan::waitTime [private]

waiting time between steps

UInt8 SpdDelayScan::scanType [private]

this is a constant and should be 2 for a dac scan

SPDConfig* SpdDelayScan::parent [private]

parent SPDConfig to handle the hardware

UInt8 SpdDelayScan::misControlIndex [private]

stores the misc_control index

UInt8 SpdDelayScan::delayControlIndex [private]

stores the delayControlIndex

UInt8 SpdDelayScan::misControlValue [private]

stores the current misc control value

timer SpdDelayScan::timerScan [private]

timer for the scan

---

The documentation for this class was generated from the following files:

• F:/projectos/SpdFEDServerPackage/SpdFEDServerRelease/HSConfig/SpdDelayScan.h
• F:/projectos/SpdFEDServerPackage/SpdFEDServerRelease/HSConfig/SpdDelayScan.cpp

---
