SpdUniMatrixScan Class Reference

Class to perform a uniformity matrix scan. More...

#include <SpdUniMatrixScan.h>

Inheritance diagram for SpdUniMatrixScan:

[legend]

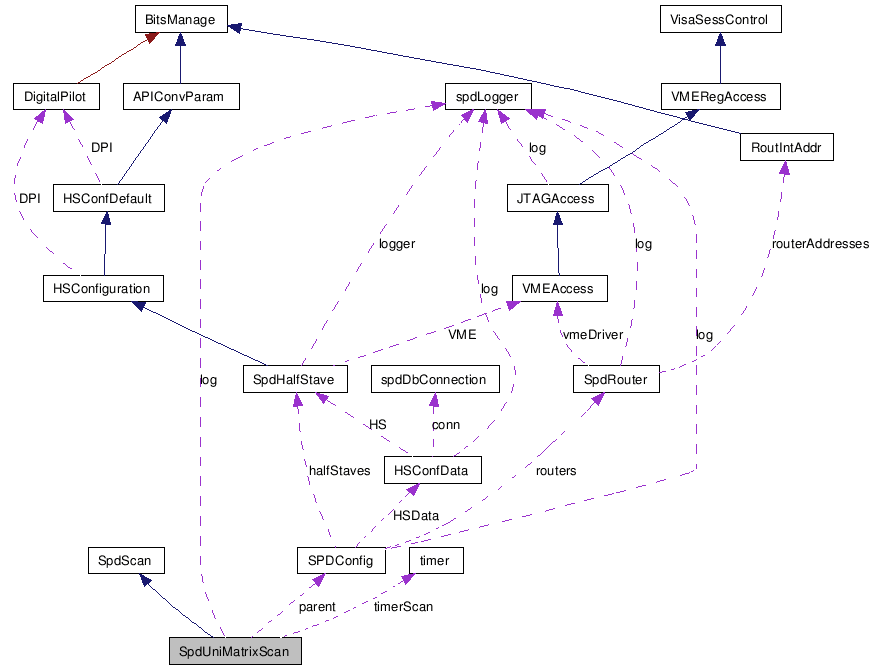

Collaboration diagram for SpdUniMatrixScan:

[legend]

List of all members.

Public Member Functions
unsigned	start (unsigned trigNumber, unsigned rStart, unsigned rEnd, bool mskNActive)
unsigned	restart (void)
	Method to restart the dac scan.
void	stop ()
	Method to stop the dac scan.
void	scan ()
	Method to lead the dac scan.
bool	isActive ()
	method to get if the scan is active or not
	SpdUniMatrixScan (SPDConfig *spdconf)
	~SpdUniMatrixScan (void)
Private Member Functions
void	SetMatrixToAllEnabled (UInt8 rowStart, UInt8 nRows)
	sets a certain number of TP rows all enabled channels
void	SetScansHeader (UInt8 routerNumber)
Private Attributes
bool	active
unsigned	triggerNumber
unsigned	rowStart
unsigned	rowEnd
bool	maskNoActive
unsigned	currentRow
timer	timerScan
	timer for the scan
spdLogger *	log
	logger of the class
UInt8	scanType
SPDConfig *	parent
	parent SPDConfig to handle the hardware

---

Detailed Description

Class to perform a uniformity matrix scan.

Class to perform a uniformity matrix scan in this scans basically the test pulses are set in all the detector, row by row and its checked if all the pixels receive the same number of hits

---

Constructor & Destructor Documentation

SpdUniMatrixScan::SpdUniMatrixScan

(

SPDConfig *

spdconf

)

SpdUniMatrixScan::~SpdUniMatrixScan

(

void

)

---

Member Function Documentation

void SpdUniMatrixScan::SetMatrixToAllEnabled	(	UInt8	rowStart,
		UInt8	nRows
	)			[private]

sets a certain number of TP rows all enabled channels

void SpdUniMatrixScan::SetScansHeader

(

UInt8

routerNumber

)

[private]

will write the router header for this scan

Parameters:

routerNumber,router

number

unsigned SpdUniMatrixScan::start	(	unsigned	trigNumber,
		unsigned	rStart,
		unsigned	rEnd,
		bool	mskNActive
	)

method to start the scan

Parameters:

	trigNumber	number of triggers to send
	rStart	row where the scan starts
	rEnd	row where the scan finishes enable or disable the masking of not used rows

unsigned SpdUniMatrixScan::restart

(

void

)

[virtual]

Method to restart the dac scan.

Reimplemented from SpdScan.

void SpdUniMatrixScan::stop

(

)

[inline, virtual]

Method to stop the dac scan.

Reimplemented from SpdScan.

void SpdUniMatrixScan::scan

(

)

[virtual]

Method to lead the dac scan.

Reimplemented from SpdScan.

bool SpdUniMatrixScan::isActive

(

)

[inline, virtual]

method to get if the scan is active or not

Reimplemented from SpdScan.

---

Member Data Documentation

bool SpdUniMatrixScan::active [private]

unsigned SpdUniMatrixScan::triggerNumber [private]

unsigned SpdUniMatrixScan::rowStart [private]

unsigned SpdUniMatrixScan::rowEnd [private]

bool SpdUniMatrixScan::maskNoActive [private]

unsigned SpdUniMatrixScan::currentRow [private]

timer SpdUniMatrixScan::timerScan [private]

timer for the scan

spdLogger* SpdUniMatrixScan::log [private]

logger of the class

UInt8 SpdUniMatrixScan::scanType [private]

SPDConfig* SpdUniMatrixScan::parent [private]

parent SPDConfig to handle the hardware

---

The documentation for this class was generated from the following files:

• F:/projectos/SpdFEDServerPackage/SpdFEDServerRelease/HSConfig/SpdUniMatrixScan.h
• F:/projectos/SpdFEDServerPackage/SpdFEDServerRelease/HSConfig/SpdUniMatrixScan.cpp

---
