spdMeanTHScan Class Reference

Class to handle the mean threshold scan. More...

#include <spdMeanTHScan.h>

Inheritance diagram for spdMeanTHScan:

[legend]

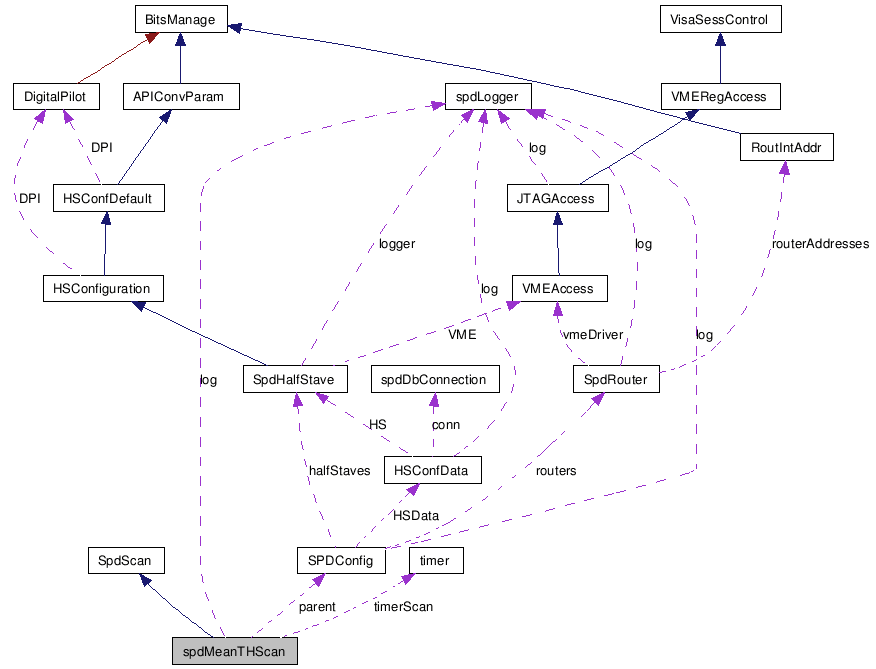

Collaboration diagram for spdMeanTHScan:

[legend]

List of all members.

Public Member Functions
	spdMeanTHScan (SPDConfig *spdConfig)
	constructor of the class
	~spdMeanTHScan (void)
unsigned	start (unsigned int tpLowMinimum, unsigned int tpLowMaximum, unsigned int tpLowStep, unsigned int rowStart, unsigned int rowEnd, unsigned int rowStep, unsigned int triggerNumber)
	Method to start the mean threshold scan.
bool	isActive ()
	returns if this scan is being performed or not
unsigned	restart ()
	Method to restart the mean threshold scan.
void	stop ()
	Method to stop the mean threshold scan.
void	scan ()
	Method for the mean threshold scan.
Private Member Functions
UInt32	setMeanTHScanHeader (void)
UInt32	getTPAmplitude (unsigned int routerNum, float *tpAmplitude)
UInt32	SetMatrixToAllEnabled (UInt8 rowStart, UInt8 nRows)
UInt32	SetTestLowToAllEnabled (int testLowValue)
float	convertAdcValue (unsigned adcCount)
	method to conver the analog pilot ADC value
UInt32	testLowStep (int currentValue, unsigned sleepTime)
	Performs a testpulse low step (sends triggers and writes headers also).
Private Attributes
SPDConfig *	parent
	the parent class to handle heardware access
spdLogger *	log
	logger instance for this class
bool	active
	stores if the scan is active or not
timer	timerScan
	timer to measure the scan result
int	tpLowMinimum
	test pulse low minimum for the scan
int	tpLowMaximum
	test pulse low maximum for the scan
int	tpLowStep
	the step of the scan
int	tpLowCurrent
	the current value for a certain test pulse low step
int	tpLowIndex
	stores the test pulse low index to be written in the router header
unsigned int	rowStart
	row start
unsigned int	rowEnd
unsigned int	rowStep
unsigned int	rowCurrent
unsigned int	activeRows
unsigned int	triggerNum

---

Detailed Description

Class to handle the mean threshold scan.

This class performs the mean threshold class a test pulse will be set and then the test pulse amplitude will be increased in steps. test-pulse high will be fixed and test-pulse low will be looped increasing the charge injected in the detector. so its basicaly a Uniformity matix with several steps of test pulse amplitude per row

---

Constructor & Destructor Documentation

spdMeanTHScan::spdMeanTHScan

(

SPDConfig *

spdConfig

)

constructor of the class

spdMeanTHScan::~spdMeanTHScan

(

void

)

---

Member Function Documentation

UInt32 spdMeanTHScan::setMeanTHScanHeader

(

void

)

[private]

Method to set the scan header in all active routers

Returns:

the error state of the operation (0=ok, not 0=problems with one of the channels)

UInt32 spdMeanTHScan::getTPAmplitude	(	unsigned int	routerNum,
		float *	tpAmplitude
	)			[private]

Method to get the test pulse amplitude in mV

Parameters:

	routerNum-	number of the router
	tpAmplitude-	array of test pulse amplitudes for the 6 half-staves in a router

Returns:

the error state of the operation (0=ok, not 0=problems with one of the channels)

UInt32 spdMeanTHScan::SetMatrixToAllEnabled	(	UInt8	rowStart,
		UInt8	nRows
	)			[private]

Method to set several rows in a matrix

UInt32 spdMeanTHScan::SetTestLowToAllEnabled

(

int

testLowValue

)

[private]

Method to set the value of test pulse low in all enabled half staves

Parameters:

testLowValue-

value of the test pulse low DAC

Returns:

error condition

float spdMeanTHScan::convertAdcValue

(

unsigned

adcCount

)

[private]

method to conver the analog pilot ADC value

Parameters:

adcCount

ADC digital value

UInt32 spdMeanTHScan::testLowStep	(	int	currentValue,
		unsigned	sleepTime
	)			[private]

Performs a testpulse low step (sends triggers and writes headers also).

Parameters:

	currentValue	current value of test pulse
	sleepTime	wait time between steps

unsigned spdMeanTHScan::start	(	unsigned int	tpLowMinimum,
		unsigned int	tpLowMaximum,
		unsigned int	tpLowStep,
		unsigned int	rowStart,
		unsigned int	rowEnd,
		unsigned int	rowStep,
		unsigned int	triggerNumber
	)

Method to start the mean threshold scan.

bool spdMeanTHScan::isActive

(

)

[inline, virtual]

returns if this scan is being performed or not

Reimplemented from SpdScan.

unsigned spdMeanTHScan::restart

(

void

)

[virtual]

Method to restart the mean threshold scan.

Reimplemented from SpdScan.

void spdMeanTHScan::stop

(

)

[inline, virtual]

Method to stop the mean threshold scan.

Reimplemented from SpdScan.

void spdMeanTHScan::scan

(

)

[virtual]

Method for the mean threshold scan.

Reimplemented from SpdScan.

---

Member Data Documentation

SPDConfig* spdMeanTHScan::parent [private]

the parent class to handle heardware access

spdLogger* spdMeanTHScan::log [private]

logger instance for this class

bool spdMeanTHScan::active [private]

stores if the scan is active or not

timer spdMeanTHScan::timerScan [private]

timer to measure the scan result

int spdMeanTHScan::tpLowMinimum [private]

test pulse low minimum for the scan

int spdMeanTHScan::tpLowMaximum [private]

test pulse low maximum for the scan

int spdMeanTHScan::tpLowStep [private]

the step of the scan

int spdMeanTHScan::tpLowCurrent [private]

the current value for a certain test pulse low step

int spdMeanTHScan::tpLowIndex [private]

stores the test pulse low index to be written in the router header

unsigned int spdMeanTHScan::rowStart [private]

row start

unsigned int spdMeanTHScan::rowEnd [private]

unsigned int spdMeanTHScan::rowStep [private]

unsigned int spdMeanTHScan::rowCurrent [private]

unsigned int spdMeanTHScan::activeRows [private]

unsigned int spdMeanTHScan::triggerNum [private]

---
