F:/projectos/SpdFEDServerPackage/SpdFEDServerRelease/ALICE_SPD_DIMServer/conf_cmd_def.h File Reference

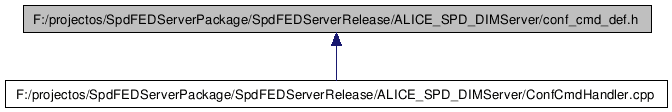

This graph shows which files directly or indirectly include this file:

Defines
#define	CNF_CHSTATUS_ALL   "CNF_CHSTATUS_ALL"
	command to refresh the status of all half staves
#define	CNF_CHSTATUS_CH   "CNF_CHSTATUS_CH"
	command to refresh the status of one half stave
#define	CNF_PL_TEMPERATURE_ON   "CNF_PL_TEMPERATURE_ON"
	command to start pooling the temperature
#define	CNF_PL_TEMPERATURE_OFF   "CNF_PL_TEMPERATURE_OFF"
	command to stop the ooling of the temperature
#define	CNF_MCMSTIMULI_ON   "CNF_MCMSTIMULI_ON"
	command to set the mcm stimuli on in one channel
#define	CNF_MCMSTIMULI_OFF   "CNF_MCMSTIMULI_OFF"
	command to clear the mcm stimuli in one channel
#define	CNF_MCMSTIMULI_ON_ALL   "CNF_MCMSTIMULI_ON_ALL"
	command to set the mcm stimuli on in all enabled channels
#define	CNF_MCMSTIMULI_OFF_ALL   "CNF_MCMSTIMULI_OFF_ALL"
	command to clear the mcm stimuli in all enabled channels
#define	CNF_PL_RT_ERRORS_START   "CNF_PL_RT_ERRORS_START"
	Starts pooling the router memory for errors.
#define	CNF_PL_RT_ERRORS_STOP   "CNF_PL_RT_ERRORS_STOP"
	Stops pooling the router memory for errors.
#define	CNF_RUN_START   "CNF_RUN_START"
	start of run commmand to initialize the run number variable
#define	CNF_RUN_STOP   "CNF_RUN_STOP"
	Stop of run variable to clean the run number variable.
#define	CNF_READ_ROUTER_ERRORS   "CNF_READ_ROUTER_ERRORS"
	Reads the error list in one router.
#define	CNF_AUTO_CONF_ROUTER   "CNF_AUTO_CONF_ROUTER"
	Auto configures the router.
#define	CNF_READ_BUSY_ROUTER   "CNF_READ_BUSY_ROUTER"
	reads the router busy times and sends them all to PVSS, 0 = busy daq, 1= busy router, 2 = busy HS, 3 = busy trigger
#define	CNF_RESTART_LOG_FILE   "CNF_RESTART_LOG_FILE"
	Renames the old FED log file and restarts a clean one.

---

Define Documentation

#define CNF_AUTO_CONF_ROUTER   "CNF_AUTO_CONF_ROUTER"

Auto configures the router.

Parameters:

options,controlReg,L0L1Time,LrxL1FastorDelay0,LrxL1FastorDelay1,LrxL1FastorDelay2

#define CNF_CHSTATUS_ALL   "CNF_CHSTATUS_ALL"

command to refresh the status of all half staves

Parameters:

array

with 120 values

#define CNF_CHSTATUS_CH   "CNF_CHSTATUS_CH"

command to refresh the status of one half stave

Parameters:

value

#define CNF_MCMSTIMULI_OFF   "CNF_MCMSTIMULI_OFF"

command to clear the mcm stimuli in one channel

Parameters:

channelNumber,columnToSet

#define CNF_MCMSTIMULI_OFF_ALL   "CNF_MCMSTIMULI_OFF_ALL"

command to clear the mcm stimuli in all enabled channels

Parameters:

columnToSet

#define CNF_MCMSTIMULI_ON   "CNF_MCMSTIMULI_ON"

command to set the mcm stimuli on in one channel

Parameters:

channelNumber,columnToSet

#define CNF_MCMSTIMULI_ON_ALL   "CNF_MCMSTIMULI_ON_ALL"

command to set the mcm stimuli on in all enabled channels

Parameters:

columnToSet

#define CNF_PL_RT_ERRORS_START   "CNF_PL_RT_ERRORS_START"

Starts pooling the router memory for errors.

#define CNF_PL_RT_ERRORS_STOP   "CNF_PL_RT_ERRORS_STOP"

Stops pooling the router memory for errors.

#define CNF_PL_TEMPERATURE_OFF   "CNF_PL_TEMPERATURE_OFF"

command to stop the ooling of the temperature

#define CNF_PL_TEMPERATURE_ON   "CNF_PL_TEMPERATURE_ON"

command to start pooling the temperature

Parameters:

refresh

time (ms)

#define CNF_READ_BUSY_ROUTER   "CNF_READ_BUSY_ROUTER"

reads the router busy times and sends them all to PVSS, 0 = busy daq, 1= busy router, 2 = busy HS, 3 = busy trigger

#define CNF_READ_ROUTER_ERRORS   "CNF_READ_ROUTER_ERRORS"

Reads the error list in one router.

#define CNF_RESTART_LOG_FILE   "CNF_RESTART_LOG_FILE"

Renames the old FED log file and restarts a clean one.

#define CNF_RUN_START   "CNF_RUN_START"

start of run commmand to initialize the run number variable

#define CNF_RUN_STOP   "CNF_RUN_STOP"

Stop of run variable to clean the run number variable.

---
