F:/projectos/SpdFEDServerPackage/SpdFEDServerRelease/ALICE_SPD_DIMServer/hscfg_cmd_def.h File Reference

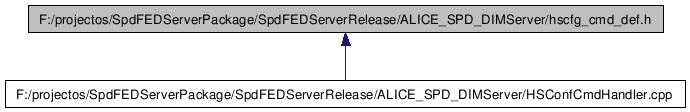

This graph shows which files directly or indirectly include this file:

Defines
#define	HSCNF_DB_DIFF_COUNT   "HSCNF_DB_DIFF_COUNT"
	command to count the diferences between the data in the default containers and actual containers in the fed
#define	HSCNF_DB_COMPARE   "HSCNF_DB_COMPARE"
	command to compare the data in the default containers and actual containers in the fed and save it to the temporary table in the database
#define	HSCNF_CONFIGURE_DEF   "HSCNF_CONFIGURE_DEF"
	command to configure an halfstave with the default values, DPI, API and DACS
#define	HSCNF_CONFIGURE_DEF_ALL   "HSCNF_CONFIGURE_DEF_ALL"
	command to configure all of the halfstaves with the default values
#define	HSCNF_JTAG_RESET   "HSCNF_JTAG_RESET"
	performs a jtag reset in the halfstave, its a IR scan only with IR code 0xb for the pixel chips
#define	HSCNF_API__SETDAC   "HSCNF_API__SETDAC"
	command to set the dacs in the analog pilot
#define	HSCNF_API__DACDEF   "HSCNF_API__DACDEF"
	command to set the dacs in the analog pilot with the default values
#define	HSCNF_API__READ   "HSCNF_API__READ"
	command to read the dacs in the analog pilot
#define	HSCNF_API__READADC   "HSCNF_API__READADC"
	command to read the adcs in the analog pilot
#define	HSCNF_API__SET_ONE_DAC   "HSCNF_API__SET_ONE_DAC"
	command to set only one dac of the analog pilot
#define	HSCNF_DPI_SET   "HSCNF_DPI_SET"
	command to set the digital pilot settings
#define	HSCNF_DPI_DEF   "HSCNF_DPI_DEF"
	command to set the digital pilot settings with the default values
#define	HSCNF_DPI_READ   "HSCNF_DPI_READ"
	command to read the digital pilot settings
#define	HSCNF_DPI_INT_SET   "HSCNF_DPI_INT_SET"
	command to set the digital pilot internal settings
#define	HSCNF_DPI_INT_DEF   "HSCNF_DPI_INT_DEF"
	command to set the digital pilot internal settings with the default values
#define	HSCNF_DPI_INT_DEF_ALL   "HSCNF_DPI_INT_DEF_ALL"
	command to set the digital pilot internal settings with the default values in all enabled halfstaves
#define	HSCNF_DATA_RESET_ALL   "HSCNF_DATA_RESET_ALL"
	command to set the digital pilot internal settings with the default values in all enabled halfstaves
#define	HSCNF_PIXMTX_SET   "HSCNF_PIXMTX_SET"
	command to set the matrix settings
#define	HSCNF_PIXMASK_DEF   "HSCNF_PIXMASK_DEF"
	command to set the matrix settings with the values from the database
#define	HSCNF_PIX_UNMASK_ALL   "HSCNF_PIX_UNMASK_ALL"
	command to unmask all pixel chips
#define	HSCNF_PXDAC_DEFAULT   "HSCNF_PXDAC_DEFAULT"
	command to set the pixel dacs with the defualt values
#define	HSCNF_PXDAC_ALL   "HSCNF_PXDAC_ALL"
	command to set all pixel dacs in one hs
#define	HSCNF_PXDAC_CH   "HSCNF_PXDAC_CH"
	command to set only one pixel dac in one hs
#define	HSCNF_READ_PXDAC   "HSCNF_READ_PXDAC"
#define	HSCNF_DB_GET   "HSCNF_DB_GET"
	command to get the current configuration of the detector from the database
#define	HSCNF_DB_SET   "HSCNF_DB_SET"
	command to save the current configuration of the detector in the database
#define	HSCNF_DB_LINK   "HSCNF_DB_LINK"
	command to link the two side versions of each fed in the global version in the database
#define	HSCNF_DB_GET_SIDE_VERSION   "HSCNF_DB_GET_SIDE_VERSION"
	command to return the current database side version assigned to this fed server
#define	HSCNF_DB_GET_GLOBAL_VERSION   "HSCNF_DB_GET_GLOBAL_VERSION"
	command to return the current database global version loaded in the FED
#define	HSCNF_DB_MASK   "HSCNF_DB_MASK"
	command to mask the full detector with the data from the database
#define	HSCNF_DB_GET_MASK_VERSION   "HSCNF_DB_GET_MASK_VERSION"
	command to return the current mask (noisy pixels) version assigned to this fed server
#define	HSCNF_ACTUALS_TO_FILE   "HSCNF_ACTUALS_TO_FILE"
	command to dump all actual settings to file, it will generate 60 files in the folder '' with the name actualHS001.txt, actualHS002 etc
#define	HSCNF_DEFAULTS_TO_FILE   "HSCNF_DEFAULTS_TO_FILE"
	command to dump all default settings to file, it will generate 60 files in the folder '' with the name defaultHS001.txt, actualHS002 etc
#define	HSCNF_FILE_GET   "HSCNF_FILE_GET"
	command the read a file for a certain channel
#define	HSCNF_FILE_GETNAME   "HSCNF_FILE_GETNAME"
	command to return the file name assigned to a certain channel
#define	HSCNF_FILE_REFRESH   "HSCNF_FILE_REFRESH"
	command to reload a file for a certain channel
#define	HSCNF_FILE_LOAD   "HSCNF_FILE_LOAD"
	command to load a file to memory !? I think it is connected with the fact that PVSS cannot read binary files (should it be there!?)
#define	HSCNF_PIXEL_DAC   "HSCNF_PIXEL_DAC"
	gets the current default configuration from the fed server for the pixel dacs
#define	HSCNF_APIDAC   "HSCNF_APIDAC"
	gets the current default configuration from the fed server for the analog pilot dacs
#define	HSCNF_DPICONF   "HSCNF_DPICONF"
	gets the current default configuration from the fed server for the digital pilot
#define	HSCNF_GOLCONF   "HSCNF_GOLCONF"
	gets the current configuration for the gol from the fed server
#define	HSCNF_NOISYPIX   "HSCNF_NOISYPIX"
	gets the default configuration in the fed memory (from configuration file only)

---

Define Documentation

#define HSCNF_ACTUALS_TO_FILE   "HSCNF_ACTUALS_TO_FILE"

command to dump all actual settings to file, it will generate 60 files in the folder '' with the name actualHS001.txt, actualHS002 etc

#define HSCNF_API__DACDEF   "HSCNF_API__DACDEF"

command to set the dacs in the analog pilot with the default values

#define HSCNF_API__READ   "HSCNF_API__READ"

command to read the dacs in the analog pilot

#define HSCNF_API__READADC   "HSCNF_API__READADC"

command to read the adcs in the analog pilot

#define HSCNF_API__SET_ONE_DAC   "HSCNF_API__SET_ONE_DAC"

command to set only one dac of the analog pilot

Parameters:

	dac	number (follows the same order as in the jtag scan)
	dac	value

#define HSCNF_API__SETDAC   "HSCNF_API__SETDAC"

command to set the dacs in the analog pilot

#define HSCNF_APIDAC   "HSCNF_APIDAC"

gets the current default configuration from the fed server for the analog pilot dacs

#define HSCNF_CONFIGURE_DEF   "HSCNF_CONFIGURE_DEF"

command to configure an halfstave with the default values, DPI, API and DACS

Returns:

1 if it fails setting the digital pilot, 2 if it fails the analog pilot setting, 3 if it fails the pixel dacs settings

#define HSCNF_CONFIGURE_DEF_ALL   "HSCNF_CONFIGURE_DEF_ALL"

command to configure all of the halfstaves with the default values

Returns:

an array with 60 elements each one with the status of the configuration (1- dpi problem, 2 api problem, 3 pix dac problem, -1 if the channel was skipped)

#define HSCNF_DATA_RESET_ALL   "HSCNF_DATA_RESET_ALL"

command to set the digital pilot internal settings with the default values in all enabled halfstaves

#define HSCNF_DB_COMPARE   "HSCNF_DB_COMPARE"

command to compare the data in the default containers and actual containers in the fed and save it to the temporary table in the database

#define HSCNF_DB_DIFF_COUNT   "HSCNF_DB_DIFF_COUNT"

command to count the diferences between the data in the default containers and actual containers in the fed

Returns:

McmDifferences, DacDifferences, NoisyDifferences

#define HSCNF_DB_GET   "HSCNF_DB_GET"

command to get the current configuration of the detector from the database

#define HSCNF_DB_GET_GLOBAL_VERSION   "HSCNF_DB_GET_GLOBAL_VERSION"

command to return the current database global version loaded in the FED

#define HSCNF_DB_GET_MASK_VERSION   "HSCNF_DB_GET_MASK_VERSION"

command to return the current mask (noisy pixels) version assigned to this fed server

#define HSCNF_DB_GET_SIDE_VERSION   "HSCNF_DB_GET_SIDE_VERSION"

command to return the current database side version assigned to this fed server

#define HSCNF_DB_LINK   "HSCNF_DB_LINK"

command to link the two side versions of each fed in the global version in the database

#define HSCNF_DB_MASK   "HSCNF_DB_MASK"

command to mask the full detector with the data from the database

Parameters:

versionNumber

#define HSCNF_DB_SET   "HSCNF_DB_SET"

command to save the current configuration of the detector in the database

#define HSCNF_DEFAULTS_TO_FILE   "HSCNF_DEFAULTS_TO_FILE"

command to dump all default settings to file, it will generate 60 files in the folder '' with the name defaultHS001.txt, actualHS002 etc

#define HSCNF_DPI_DEF   "HSCNF_DPI_DEF"

command to set the digital pilot settings with the default values

#define HSCNF_DPI_INT_DEF   "HSCNF_DPI_INT_DEF"

command to set the digital pilot internal settings with the default values

#define HSCNF_DPI_INT_DEF_ALL   "HSCNF_DPI_INT_DEF_ALL"

command to set the digital pilot internal settings with the default values in all enabled halfstaves

#define HSCNF_DPI_INT_SET   "HSCNF_DPI_INT_SET"

command to set the digital pilot internal settings

#define HSCNF_DPI_READ   "HSCNF_DPI_READ"

command to read the digital pilot settings

#define HSCNF_DPI_SET   "HSCNF_DPI_SET"

command to set the digital pilot settings

#define HSCNF_DPICONF   "HSCNF_DPICONF"

gets the current default configuration from the fed server for the digital pilot

#define HSCNF_FILE_GET   "HSCNF_FILE_GET"

command the read a file for a certain channel

#define HSCNF_FILE_GETNAME   "HSCNF_FILE_GETNAME"

command to return the file name assigned to a certain channel

#define HSCNF_FILE_LOAD   "HSCNF_FILE_LOAD"

command to load a file to memory !? I think it is connected with the fact that PVSS cannot read binary files (should it be there!?)

#define HSCNF_FILE_REFRESH   "HSCNF_FILE_REFRESH"

command to reload a file for a certain channel

#define HSCNF_GOLCONF   "HSCNF_GOLCONF"

gets the current configuration for the gol from the fed server

#define HSCNF_JTAG_RESET   "HSCNF_JTAG_RESET"

performs a jtag reset in the halfstave, its a IR scan only with IR code 0xb for the pixel chips

#define HSCNF_NOISYPIX   "HSCNF_NOISYPIX"

gets the default configuration in the fed memory (from configuration file only)

#define HSCNF_PIX_UNMASK_ALL   "HSCNF_PIX_UNMASK_ALL"

command to unmask all pixel chips

#define HSCNF_PIXEL_DAC   "HSCNF_PIXEL_DAC"

gets the current default configuration from the fed server for the pixel dacs

#define HSCNF_PIXMASK_DEF   "HSCNF_PIXMASK_DEF"

command to set the matrix settings with the values from the database

#define HSCNF_PIXMTX_SET   "HSCNF_PIXMTX_SET"

command to set the matrix settings

#define HSCNF_PXDAC_ALL   "HSCNF_PXDAC_ALL"

command to set all pixel dacs in one hs

#define HSCNF_PXDAC_CH   "HSCNF_PXDAC_CH"

command to set only one pixel dac in one hs

#define HSCNF_PXDAC_DEFAULT   "HSCNF_PXDAC_DEFAULT"

command to set the pixel dacs with the defualt values

#define HSCNF_READ_PXDAC   "HSCNF_READ_PXDAC"

---
