SpdDacScan Class Reference

Class to manage the generic dac scan of the detector*/. More...

#include <spdDacScan.h>

Inheritance diagram for SpdDacScan:

[legend]

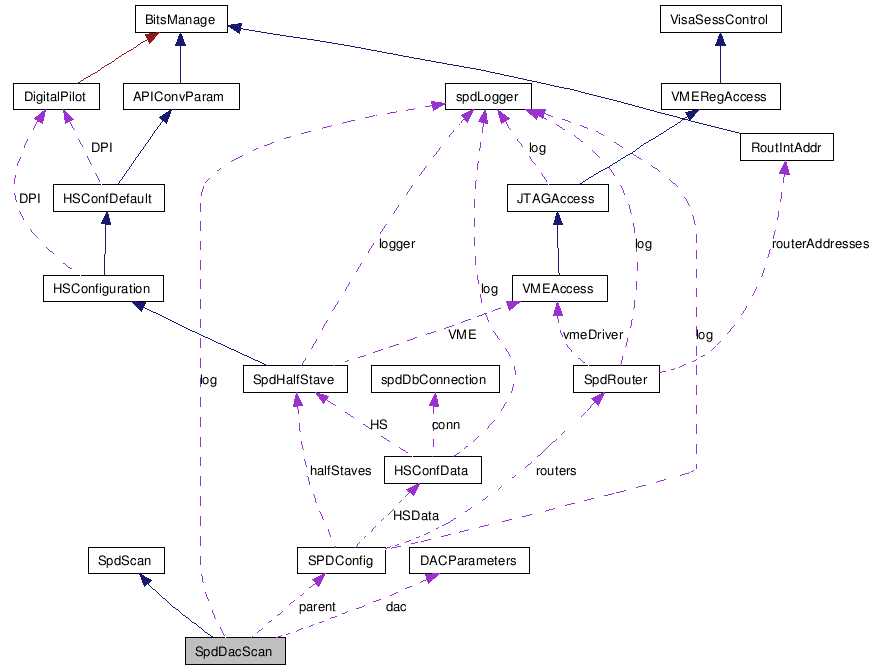

Collaboration diagram for SpdDacScan:

[legend]

List of all members.

Public Member Functions
unsigned	start (UInt32 triggerNumber, UInt8 dacMin, UInt8 dacMax, UInt8 step, UInt8 dacIdentifier, bool InternTrig, UInt32 waitTime)
unsigned	restart (void)
	Method to restart the dac scan.
void	stop ()
	Method to stop the dac scan.
void	scan ()
	Method to lead the dac scan.
bool	isActive ()
	method to get if the scan is active or not
void	setChipSelected (UInt32 value)
	sets the chip selected
UInt32	getChipSelected (void)
	gets the chip selected
	SpdDacScan (SPDConfig *spdConf)
	constructor
	~SpdDacScan (void)
Private Member Functions
void	SetScansHeader (UInt8 routerNumber)
Private Attributes
bool	active
	stores if the channel is active or not
DACParameters	dac
	stores the parameters of a dac scan
spdLogger *	log
	logger of the class
bool	internalTrigger
	stores if we use internal trigger or not
UInt32	triggerN
	stores the number of triggers
UInt32	chipSelect
	keeps the chip selection for this scan (10 bits)
UInt32	waitTime
	waiting time between steps
UInt8	scanType
	this is a constant and should be 2 for a dac scan
SPDConfig *	parent
	parent SPDConfig to handle the hardware
Friends
class	SpdMinThresScan

---

Detailed Description

Class to manage the generic dac scan of the detector*/.

---

Constructor & Destructor Documentation

SpdDacScan::SpdDacScan

(

SPDConfig *

spdConf

)

constructor

SpdDacScan::~SpdDacScan

(

void

)

---

Member Function Documentation

void SpdDacScan::SetScansHeader

(

UInt8

routerNumber

)

[private]

unsigned SpdDacScan::start	(	UInt32	triggerNumber,
		UInt8	dacMin,
		UInt8	dacMax,
		UInt8	step,
		UInt8	dacIdentifier,
		bool	InternTrig,
		UInt32	waitTime
	)

Method to start the dac scan

Parameters:

	triggerNumber	number of triggers to send
	dacMin	dac value to start the scan
	dacMax	dac value for the end of the scan
	dacIdentifier	index identifying the pixel dac for the scan
	InternTrig	enables internal trigger of not
	waitTime	time to wait between steps

unsigned SpdDacScan::restart

(

void

)

[virtual]

Method to restart the dac scan.

Reimplemented from SpdScan.

void SpdDacScan::stop

(

)

[inline, virtual]

Method to stop the dac scan.

Reimplemented from SpdScan.

void SpdDacScan::scan

(

)

[virtual]

Method to lead the dac scan.

Reimplemented from SpdScan.

bool SpdDacScan::isActive

(

)

[inline, virtual]

method to get if the scan is active or not

Reimplemented from SpdScan.

void SpdDacScan::setChipSelected

(

UInt32

value

)

[inline]

sets the chip selected

UInt32 SpdDacScan::getChipSelected

(

void

)

[inline]

gets the chip selected

---

Friends And Related Function Documentation

friend class SpdMinThresScan [friend]

---

Member Data Documentation

bool SpdDacScan::active [private]

stores if the channel is active or not

DACParameters SpdDacScan::dac [private]

stores the parameters of a dac scan

spdLogger* SpdDacScan::log [private]

logger of the class

bool SpdDacScan::internalTrigger [private]

stores if we use internal trigger or not

UInt32 SpdDacScan::triggerN [private]

stores the number of triggers

UInt32 SpdDacScan::chipSelect [private]

keeps the chip selection for this scan (10 bits)

UInt32 SpdDacScan::waitTime [private]

waiting time between steps

UInt8 SpdDacScan::scanType [private]

this is a constant and should be 2 for a dac scan

SPDConfig* SpdDacScan::parent [private]

parent SPDConfig to handle the hardware

---

The documentation for this class was generated from the following files:

• F:/projectos/SpdFEDServerPackage/SpdFEDServerRelease/HSConfig/spdDacScan.h
• F:/projectos/SpdFEDServerPackage/SpdFEDServerRelease/HSConfig/spdDacScan.cpp

---
