SpdMinThresScan Class Reference

Minimum Threshold scan for the detector. More...

#include <SpdMinThresScan.h>

Inheritance diagram for SpdMinThresScan:

[legend]

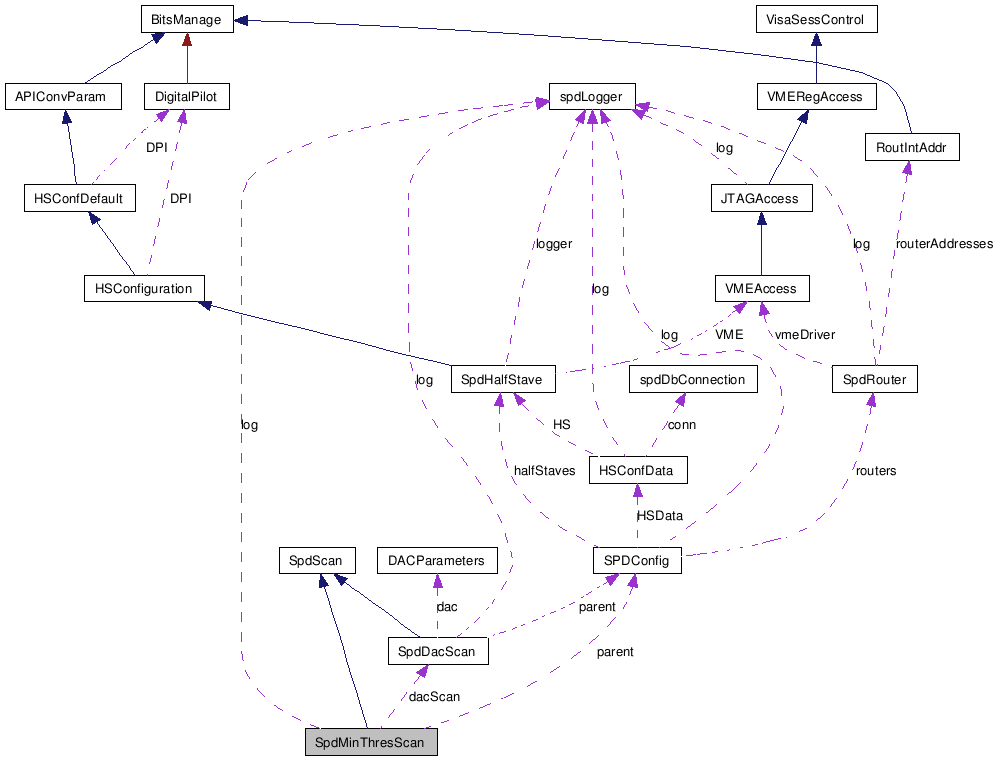

Collaboration diagram for SpdMinThresScan:

[legend]

List of all members.

Public Member Functions
unsigned	start (UInt32 triggerNumber, UInt8 dacMin, UInt8 dacMax, UInt8 step, bool InternTrig, UInt32 waitTime)
	Method to start the dac scan.
unsigned	restart (void)
	Method to restart the dac scan.
bool	isActive ()
void	stop ()
	Method to stop the dac scan.
void	scan ()
	Method to lead the dac scan.
	SpdMinThresScan (SPDConfig *spdConf)
	constructor
	~SpdMinThresScan (void)
Private Attributes
bool	active
	stores if the scan is being performed or not
spdLogger *	log
	logger of the class
SpdDacScan *	dacScan
	will use a SpdDacScan object to perform the dac scans
SPDConfig *	parent
	parent SPDConfig to handle the hardware
unsigned	prevth_index
	stores the prevth index
unsigned	scanPhase

---

Detailed Description

Minimum Threshold scan for the detector.

Minimum Threshold scan for the detector pre_vth dac will be scanned to access what is the maximum threshold (minimum value of pre_vth) that can be used without noise in the detector because of the ocupancy limit in the link receiver this scan is performed with only one pixel chip activated per halfstave

---

Constructor & Destructor Documentation

SpdMinThresScan::SpdMinThresScan

(

SPDConfig *

spdConf

)

constructor

SpdMinThresScan::~SpdMinThresScan

(

void

)

---

Member Function Documentation

unsigned SpdMinThresScan::start	(	UInt32	triggerNumber,
		UInt8	dacMin,
		UInt8	dacMax,
		UInt8	step,
		bool	InternTrig,
		UInt32	waitTime
	)

Method to start the dac scan.

unsigned SpdMinThresScan::restart

(

void

)

[virtual]

Method to restart the dac scan.

Reimplemented from SpdScan.

bool SpdMinThresScan::isActive

(

)

[inline, virtual]

Reimplemented from SpdScan.

void SpdMinThresScan::stop

(

)

[inline, virtual]

Method to stop the dac scan.

Reimplemented from SpdScan.

void SpdMinThresScan::scan

(

)

[virtual]

Method to lead the dac scan.

Reimplemented from SpdScan.

---

Member Data Documentation

bool SpdMinThresScan::active [private]

stores if the scan is being performed or not

spdLogger* SpdMinThresScan::log [private]

logger of the class

SpdDacScan* SpdMinThresScan::dacScan [private]

will use a SpdDacScan object to perform the dac scans

SPDConfig* SpdMinThresScan::parent [private]

parent SPDConfig to handle the hardware

unsigned SpdMinThresScan::prevth_index [private]

stores the prevth index

unsigned SpdMinThresScan::scanPhase [private]

scanPhase of the run this made with only pixel chip activated at a time so we there are 10 scan phases

---

The documentation for this class was generated from the following files:

• F:/projectos/SpdFEDServerPackage/SpdFEDServerRelease/HSConfig/SpdMinThresScan.h
• F:/projectos/SpdFEDServerPackage/SpdFEDServerRelease/HSConfig/SpdMinThresScan.cpp

---
