SpdRouter Class Reference

SPD Router class. More...

#include <spdRouter.h>

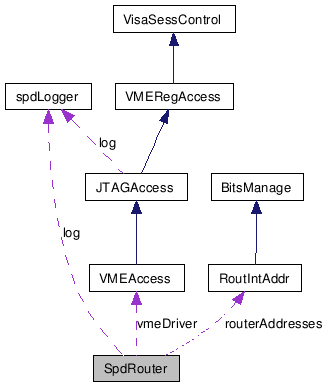

Collaboration diagram for SpdRouter:

Collaboration graph
[legend]

List of all members.

Public Member Functions

void reset (void)
void writeL0L1Time (UInt32 value)
ViStatus setMcmStimuly (UInt8 channelInRouter, UInt32 enable, UInt32 ColumnToSet=1)
 SpdRouter (unsigned routNumber, VMEAccess *vmeDriver)
 ~SpdRouter (void)
ViStatus SendTrigger (UInt32 triggerN, bool delay=true, bool l2y=true, bool l1=true, bool tp=true)
ViStatus WriteHeader (UInt32 data[], UInt32 size)
ViStatus setBusyFlag (bool busy)
bool getIdleFlag ()
ViStatus setStopSM (bool stopSM)
bool getStopSM ()
unsigned getRouterNumber ()
 getter for the router number
ViStatus dataResetHS ()
vector< RouterErrorreadErrorList ()
UInt32 readErrorMask ()
void writeErrorMask (UInt32 mask)
void resetHalfStave (unsigned halfstave)
void writeControlReg (UInt32 regValue)
UInt32 readControlReg ()
void writeHalfStaveMask (unsigned mask)
void resetDetector ()
void writeLrxFastorL1Delay (unsigned lrx, UInt32 fastorDelay)
void configureRouter (UInt32 options, UInt32 ctlrReg, UInt32 L0L1, UInt32 lrxFoDelays[])
UInt32 readRouterBusyTimes (UInt32 values[])
void resetJtagcontrollers ()
void checkJtagIdles ()
 Method to check all idles in all the jtag controllers.
bool isJtagIdle (int hs)
 Checks if one jtag controller is in idle.

Private Attributes

DimService * serviceRouterError
int routerError
spdLoggerlog
unsigned int routerNumber
 intenal member storing the router number
RoutIntAddr routerAddresses
 internal member class to store the router addresses
VMEAccessvmeDriver
 vme access class, will act as the lower level driver

Classes

struct  RouterError
 simple struct to hold one router error More...


Detailed Description

SPD Router class.

THis is an higher level class to handle routers has clear methods to perform all router opetarions


Constructor & Destructor Documentation

SpdRouter::SpdRouter ( unsigned  routNumber,
VMEAccess vmeDriver
)

constructor of the class

Parameters:
routNumber,: number of the router
vmeDriver,: VMEAcess class to get the vme access

SpdRouter::~SpdRouter ( void   )


Member Function Documentation

void SpdRouter::reset ( void   )

Performs a router reset and the reset of all lrx in this router

void SpdRouter::writeL0L1Time ( UInt32  value  )

writes the LoL1 time i nthe router

ViStatus SpdRouter::setMcmStimuly ( UInt8  channelInRouter,
UInt32  enable,
UInt32  ColumnToSet = 1
)

Sets the memc stimuly, will stop router state machine and write in the correct link receiver the settings

Parameters:
channelInRouter : chanel in this router to enable the mcm stimuly (0-5)
enable,: 1 -> enable mcm stimly, 0 -> disable it
column to set (parameter to set in the mcm stimuly register see documentation of the router/lrx to be sure)

ViStatus SpdRouter::SendTrigger ( UInt32  triggerN,
bool  delay = true,
bool  l2y = true,
bool  l1 = true,
bool  tp = true
)

method to send triggers to one router, by default all trigger types are true

Parameters:
triggerN,: number of triggers to send
delay,: delay option
l2y,: level 2 yes trigger option
l1,: level 1 trigger
tp,: test pulse trigger

ViStatus SpdRouter::WriteHeader ( UInt32  data[],
UInt32  size
)

Method to write a raw data in the calibration header in one router

Parameters:
data,: array of 32 bit words to write
size,: number of words to write

ViStatus SpdRouter::setBusyFlag ( bool  busy  )

method to set the busy flag reads the control register of the router and writes the same value just setting the flag

bool SpdRouter::getIdleFlag (  )

method to return if a router is idle or not reads the control register 2 and makes an and with 0x4

ViStatus SpdRouter::setStopSM ( bool  stopSM  )

Stets the stop state machine bit in the control register

bool SpdRouter::getStopSM (  )

method to get if a router has the stop machine stopped or not reads the control register 2 and makes an and with 0x400

unsigned SpdRouter::getRouterNumber (  )  [inline]

getter for the router number

ViStatus SpdRouter::dataResetHS (  )

vector< SpdRouter::RouterError > SpdRouter::readErrorList (  )

Method to read the error list from the router memory It will read the router memory and parse each error (4 32 bit registers) word0 = Errors_counting [23:12], bc_id [11:0] word1 = Errors Class [31:10] , Error Name [9:0] word2 = Detail 1[31:0] word3 = Detail 2[31:0]

UInt32 SpdRouter::readErrorMask (  )

Method to read the error mask register of one router this is address 0xf0, the format of this register bits its the following: 0 Enable / Disable Error Handling 1 Mask ' TTCRX and QPLL link error 2 Mask ' Trigger Errors from TSM 3 Mask ' Timeout BC Reset error 4 Mask ' Trigger error from Router FSM 5 Mask ' Fatal error DAQ from Router DAQ FSM 6 Mask ' Error Optical link (RxReady & RxError) 7 Mask ' Rx Error (HS optical link) 8 Mask ' Error Format (HS error format optical communication) 9 Mask ' Error Data Transfer (HS error optical data transfer not coherent) 10 Mask ' Error Control Int (command not properly recognized from the MCM) 11 Mask ' Error Event Number (Error in MCM Event Number) 12 Mask ' HS_0 Global Error (Idle, Busy violation, link RX fatal errors, etc) 13 Mask ' HS_1 Global Errors ( // ) 14 Mask ' HS_2 Global Errors ( // ) 15 Mask ' HS_3 Global Errors ( // ) 16 Mask ' HS_4 Global Errors ( // ) 17 Mask ' HS_5 Global Errors ( // ) 18 Mask ' HSs Timeout during data acquisitions 19 Mask ' Error Data Format ( from Router Data Format Check) 20 Mask ' Error FastOR in Data Stream ( Fast OR not coherent in the Data Stream) 21 .. 32 XXXX don't care

Returns:
the value of the mask register

void SpdRouter::writeErrorMask ( UInt32  mask  )

Writes the a maks value in the error mask register

void SpdRouter::resetHalfStave ( unsigned  halfstave  )

will send a router reset only to one halfstave it writes in the router control register masking all other channels, sends the router reset and then rewrites the original router control

void SpdRouter::writeControlReg ( UInt32  regValue  )

writes the value in the control register of the router control reg information: bit 0 : DPM Sample mode bit 1 : no data to DAQ bits 2-7 : HS 0-5 mask (0 -> hs ennabled, 1 -> hs masked) bit 8: Busy flag bit 9 : enable TP in L0 bit 10: stop all state machine bit 19 : enable router header bit 20: enable orbit counter bit 21: exclude ttc

UInt32 SpdRouter::readControlReg (  )

reads the contends of the control register in ther router

void SpdRouter::writeHalfStaveMask ( unsigned  mask  )

Will write the router halfstave mask i nthw control reg

void SpdRouter::resetDetector (  )

Will all enabled hs in the router

void SpdRouter::writeLrxFastorL1Delay ( unsigned  lrx,
UInt32  fastorDelay
)

Function to write the fastor L1 delay in one link receiver

Parameters:
lrx,: link receiver number 0-2
fastorDelay - the L1 fastor delay

void SpdRouter::configureRouter ( UInt32  options,
UInt32  ctlrReg,
UInt32  L0L1,
UInt32  lrxFoDelays[]
)

Function to configure a router It peforms a router and lrx resets write the control register, sets L0L1 time and the fastorL1 time for all the lrx

Parameters:
options : bit0 enable router reset, bit1 configure router, bit2 L0L1 time, bit3 lrx fastor L1 time
ctlrReg,: router control reg
L0L1 time
lrxFoDelays fastor L1 delay for al link receivers (0-2)

UInt32 SpdRouter::readRouterBusyTimes ( UInt32  values[]  )

Function read the router busy times it receives as input an array that is filled inside

Parameters:
values array to be filled inside: 0 = busy daq, 1= busy router, 2 = busy HS, 3 = busy trigger
Returns:
error condition

void SpdRouter::resetJtagcontrollers (  )

Resets all jtag controlllers Send the command to the common jtag controllers area to reset the routers its resets the JTAG state machine, FIFOs and channel address

void SpdRouter::checkJtagIdles (  )

Method to check all idles in all the jtag controllers.

Loops to over the 6 jtag controllers and logs if they are not in idle

bool SpdRouter::isJtagIdle ( int  hs  )

Checks if one jtag controller is in idle.

Reads the idle bit in one jtag controller status register

Parameters:
hs jtag controller number (0-6)
Returns:
idle status


Member Data Documentation

DimService* SpdRouter::serviceRouterError [private]

Dim service displaying if there are router errors in the memory or not

int SpdRouter::routerError [private]

Internal member to keep the status of the router error, connected with serviceRouterError

spdLogger* SpdRouter::log [private]

Logging instance for the spd router

unsigned int SpdRouter::routerNumber [private]

intenal member storing the router number

RoutIntAddr SpdRouter::routerAddresses [private]

internal member class to store the router addresses

VMEAccess* SpdRouter::vmeDriver [private]

vme access class, will act as the lower level driver
